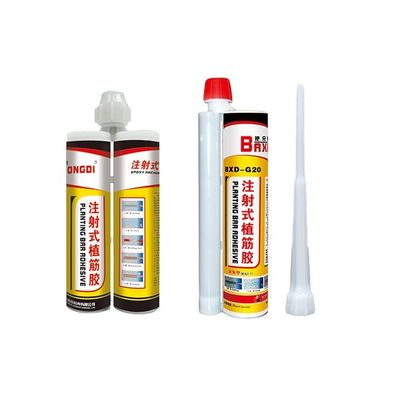

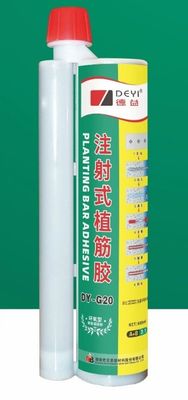

Product Details:
|
| Classification: | Double Components Adhesives | Main Raw Material: | Epoxy |
|---|---|---|---|
| Usage: | Construction, Fiber & Garment, Packing, Transportation | Type: | AB Glue |
FEATURES
Anti-aging, weather resistance, resistance to media (acid, alkali, salt, water) Performance; non-volatile solvent, non-toxic environmental protection.
Technical Parameter(G20)
|
Color |
Viscosity (CPS)(25°C) |
Glue mixed proportion |
Curing time (25°C/100g) |
shear strength(Mpa) |
Temperature resistance |
Guarantee period(25°C) |
|
A:white past |
A:60000~100000 |
3:1 |
Initial curing: 1.5hours |
≥16 |
-60°Cto +100°C |
18months |
|
B:brown paste |
B:60000~100000 |
Totally curing: 24hour |
Technical Parameter(G22)
|
Color |
Viscosity (CPS)(25°C) |
Glue mixed proportion |
Curing time (25°C/100g) |
shear strength(Mpa) |
Temperature resistance |
Guarantee period(25°C) |
|
A: white past |
A:6000~10000 |
1:1 |
Initial curing: 1.5hours |
≥16 |
-60°Cto +100°C |
18months |
|
B:brown paste |
B:6000~10000 |
Totally curing: 24hour |
Applications
Mainly used in the construction field: building columns, beams, walls, reinforcing steel root anchoring, curtain wall after the construction of embedded parts. For civil engineering: bridges, viaducts, railway bridges, seismic strengthening. Such as a variety of steel, bolts and metal profiles and concrete, rock, brick and other solid substrate drilling anchor, building structural reinforcement, planting tendons; building structural framework, shear wall anchorage, a variety of equipment based fixed; , Highway, bridge, water conservancy expansion project reinforcement; equipment foundation bolt installation.
Such as, reinforced concrete components, bolt planting
Installation and fixation of basic equipment for warfare, and optimal selection of anchor bolt fixation
Package:
400mL/pair 25pair/box
500g/pair 24pair/big box
OPEATION METHODS
1.Keep the surface dry and clean,needn’t strictly degreasing
2.Evenly mix the A and B component with 1:1 ratio.
3.Press with finger for5-10 minutes before curing.
4.This product if partial thick, is a normal phenomenon, does not affect the bonding effect
NOTICE:
1.Keep away from the reach of children
2.Use in well ventilated,but not take orally,due to its acrylic smell
3.Store in cool,dry and draughty place,and keep away from heat and flame source.
4.Don’t exchange the caps of A and B.
| Packaging | Shipping |
|
A:20g/card 24 cards/inner box 288 cards/ctn DIM:47x46x35cm.
B: 80G/card 12 cards/inner box 144 cards/ctn DIM:68X37X35CM |
1.FOB Terms(FOB GUANGZHOU/SHANGHAI/CHANGSHA) or EX Works. 2.Free sample. 3. 24 hours after-sale service. 4.Customized design and brand is ok. |
How to use:
1. Mark and locate the drilling position and depth on the substrate according to the construction drawing, and determine the drilling position and depth
2. Use a steel brush and air blower to clean the hole thoroughly
3. Place the hose with the spiral nozzle into the injection gun, insert it into the bottom of the hole, and lift it up while injecting to ensure that there is no air trapped in the hole
4. Slowly screw the steel plate or screw into the hole and do not move it during the curing time
5. Wait for enough time according to the temperature to allow the colloid to solidify
6. After curing is completed, the load can be applied
Warning:
1. Take precaution against touching by the hands or eyes. If does, dip in the water, do not peel the glue by force. If getting in the eyes, wash with water at once then see the doctor for further steps.
2. The glue has irritant odor. Keep the environment be ventilative and wear glasses to protect the eyes during long term usage.
3. Tighten the lid carefully after applying.
4. Please keep out of the touching by kid.
Storage:
1. The product is nonflammable. Keep dry and out of light, low temperature (20-25°C) during storage. The shelf life is one year.
2. If the glue does not solidifying beyond the shelf life, it could be used still. But the solidifying speed and adhesive intensity would be affected at some degree.
Scope Of Application:
This product could be applied to bond of metal, rubber, plastic, wood, pottery in the fields of daily household repairing, arts making and repairing, apparatus first orienting etc.
